Install UF Cable. Type UF cable is the most commonly used nonmetallic cable for residential outdoor wiring runs.
Electrical Conduit Underground Depth Electricity Pvc Conduit Underground
UF cable can be direct-buried without conduit with a minimum of 24 inches of earth cover.
Uf cable in conduit. UF cables above the ground is a good wires material. Running UF cable through metal or PVC conduit. UF-B is rated at 600 volts.
The first time you do a repair on your car it takes 4 hours minimum. The burial portion here would have the UF-B cable feed through additional non-metallic conduit similar to that connected to the RV panel. Although it is rated at a conductor temperature of 90ºC dry wet its ampacity is limited to 60ºC according to the NEC 2008 AND NEC 2011.
Page opposite Never use NM cable for outdoor wiring If your local code requires that underground wires be protected by conduit use THHNTHWN wire instead of UF cable. SIMpull Cable In Conduit Products 17 Filter. 1 As service-entrance cable 2 In commercial garages 3 In theaters and similar locations 4 In motion picture studios 5 In storage battery rooms 6 In hoistways or on elevators or escalators 7.
I would feed the UF-B cable into the conduit and terminate in the panelCB. In fact you can bury non-electrical tubing like plumbing PVC and then run UF cable in it as the tubing is only a sleeve not a raceway. I dont know off the top of my head.
It fits easily and the NM is not damaged. Where a PVC conduit may sleeve the UF cable as it leads up out of the ground to an electrical box. But it can be difficult to fish cable through conduit unless the conduit is at least 34 inch in diameter.
AL EPR MV CIC CABLE 1 AL HI-SCORE 600V-UD CIC CABLE 1 AL MV CIC CABLE 1. For example 31017 60 degree 2 uf cable in free air is good for 110 amps. I normally use 1 inch.
The experts said that UF cable is one of the best wires used in the conduit method. Its applications are outlined in Article 340 NEC 2008 and NEC 2011. Table 31017 says that conductors in free air can have a higher ampacity than conductors in conduit see 31016.
UF is thicker than romex so you might want to use 34 rather than 12 inch just to make it easier to push or pull through. UF cable can be direct-buried without conduit with a minimum of 24 inches of earth cover. Type UF B cable is made for direct burial underground without the use of conduit or other piping and is also gray in color and is marked as type UF B cable to denote the difference between it and the regular type UF cable which is not suitable for direct burial outside of conduit or the proper piping material.
Pulling a cable through conduit is generally considered a no no not to mention 6-3 UF is about an inch and a half wide minus 14 inch or so. Where it will then enter the shed. Wiring buried inside rigid metal RMC or intermediate metal IMC conduit must have at least 6 inches of earth cover.
CU TYPE UF CIC CABLE 1 CU TYPE USE CIC CABLE 1 CU TYPE XHHW CIC CABLE 1 HPDE EMPTY DUCT 1 HPDE EMPTY DUCT WITH PULL ROPE 1. Does UF cable need conduit. It is a bulky duty wire made from a valuable metal.
Uf cable in conduit. Use UF cable for outdoor wiring if the cable will come in direct contact with soil UF cable has a solid-core vinyl sheathing and cannot be stripped with a cable ripper Instead use a utility knife and the method shown steps 5 6. You can run romexUF in conduit as long as the fill calculations are met.
UF cable can be direct-buried without conduit with a minimum of 24 inches of earth cover. Wiring in PVC conduit must have at least 18 inches of cover. Wiring buried inside rigid metal RMC or intermediate metal IMC conduit must have at least 6 inches of earth cover.
You can purchase these kinds of wires anywhere. Moreover does UF wire need to be in conduit above ground. 34012 Uses Not Permitted.
But it can be difficult to fish cable through conduit unless the conduit is at least 34 inch in diameter. UF is slightly thicker but should fit it depends on the MFG. UF cable should not be installed into conduit with the exception of short distances such as the following.
Just so does UF wire need to be in conduit above ground. Wiring in PVC conduit must have at least 18 inches of cover. It would be a nightmare to pull and since its flat it sure doesnt like to go around corners.
Running UF cable through metal or PVC conduit. UF-B may be directly buried or installed where exposed to sunlight. UF cable can be direct-buried without conduit with a minimum of 24 inches of earth cover.
In respect to this does UF wire need to be in conduit above ground. Although not commonly done it is allowable to run UF cable but NOT NM cable through metal or PVC conduit in an underground application. UF-B cable is permitted in any outdoor raceways minding conduit fill of course.
Wiring buried inside rigid metal RMC or intermediate metal IMC conduit must have at least 6 inches of earth cover. Some are round and some are flat 3 wire or 4 wire etc. Two inch conduit would be overkill by a factor of many.
For your short section this would be normal. Type UF cable shall not be used as follows. Do not purchase the standard level cable of NM.
Out of an underground trench that is 24 inches deep. I would then run the UF-B cable along the bottom of the deck to where it would eventually be buried for about 8 ft. Although not commonly done it is allowable to run UF cable but NOT NM cable through metal or PVC conduit in an underground application.
The answer is yes you can run UF in conduit. What is UF B wire used for. Outdoor wiring under the deck and over the floor will be right after using the UF cable in conduit.
More heat 31016 2 uf cable in raceway cable or. Wiring in PVC conduit must have at least 18 inches of cover.

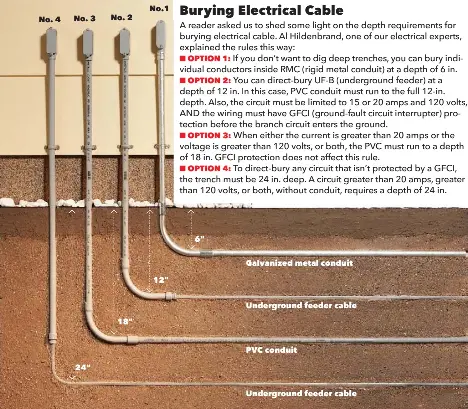

Burying Electrical Cable Pressreader
Run Underground Power To A Shed Flinn Electric Sales Service Communications Fire Alarm Systems Cctv Data Solutions
What Is Direct Burial Underground Cable
How To Bury Underground Cable Diy Family Handyman
Maximum Number Of Electrical Wires Allowed In Conduit
Proper Way To Send Uf Cable From Inside To Outside Diy Home Improvement Forum
4 Differences Between Uf And Romex Cable Doityourself Com
How To Run Outdoor Cable Better Homes Gardens

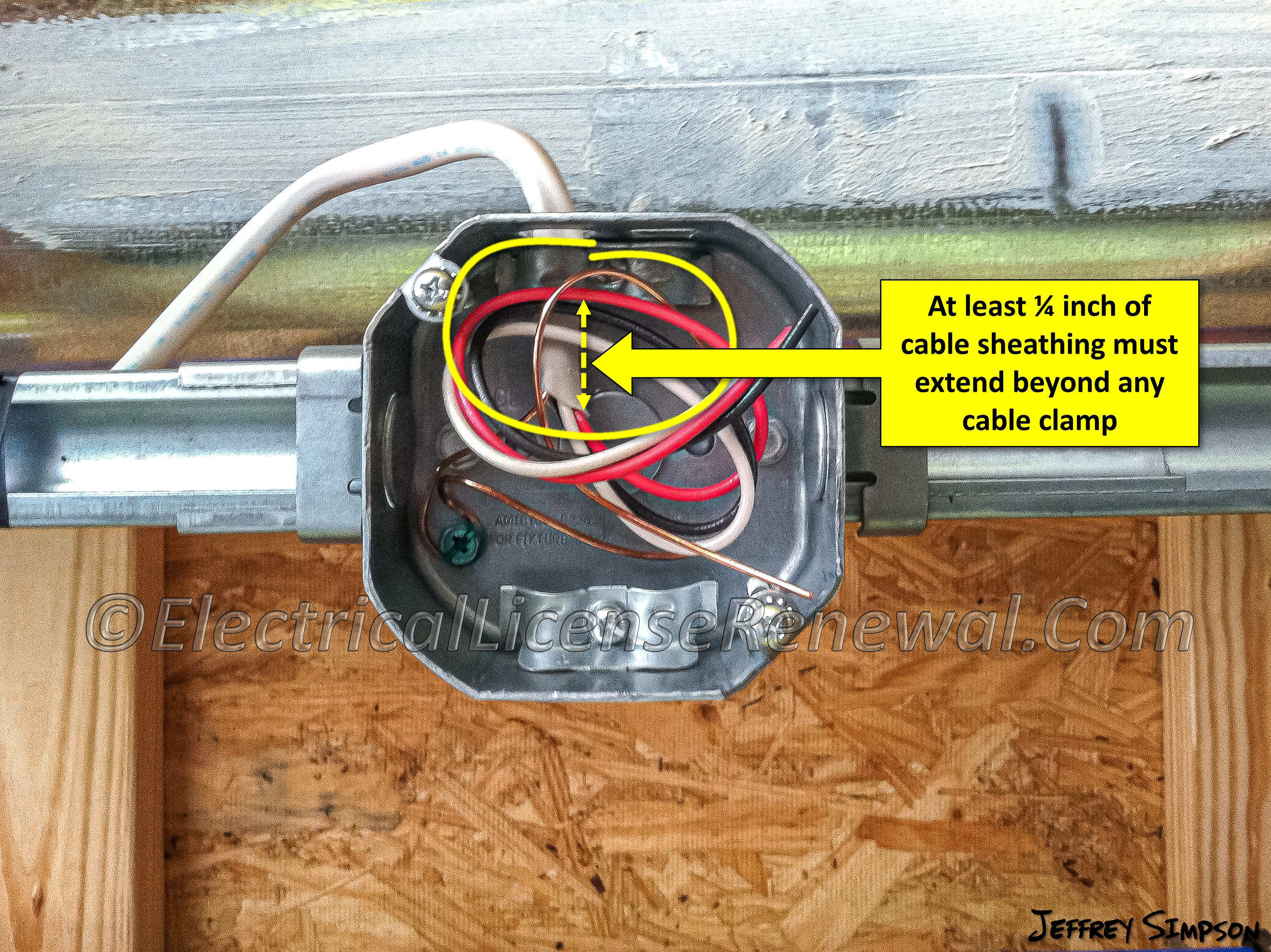

314 17 B Metal Boxes And Conduit Bodies

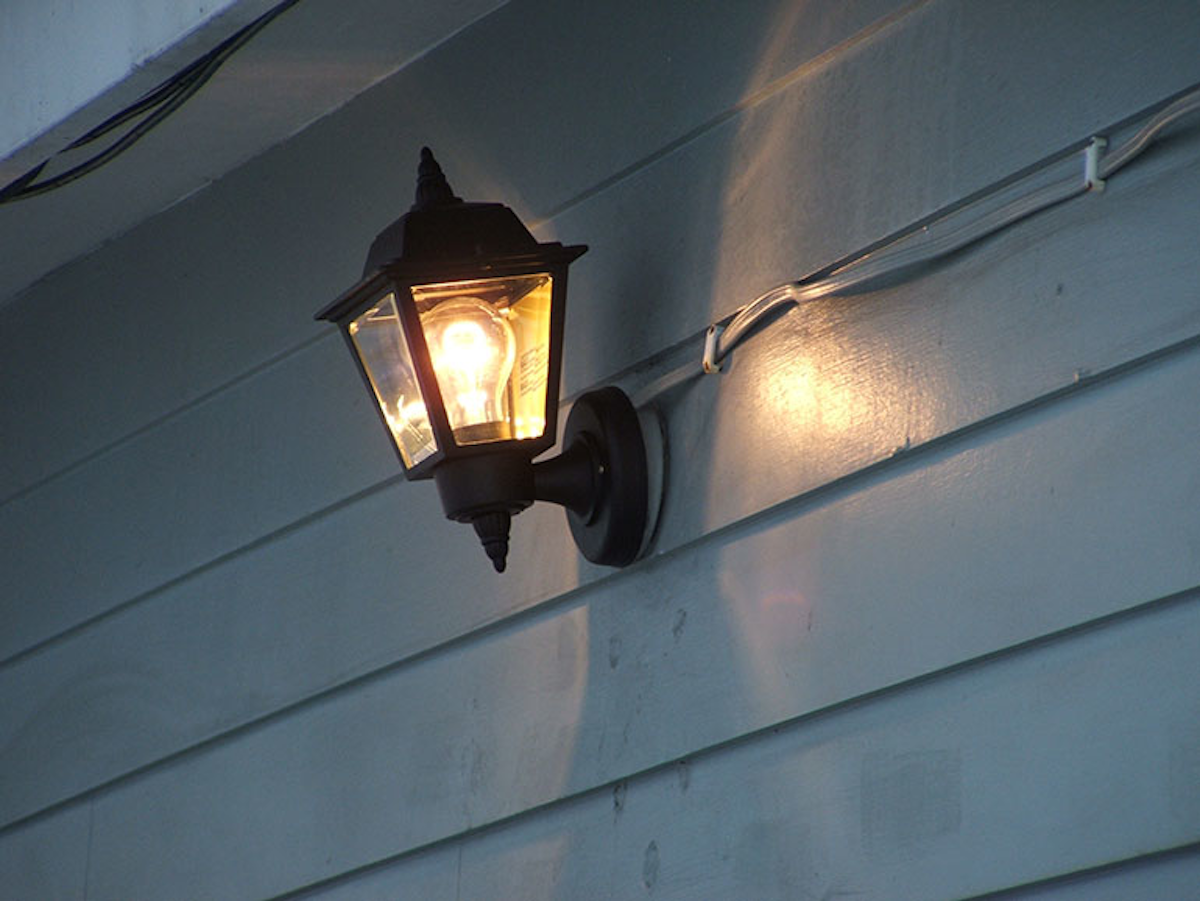

What S Wrong Here Hint Uf Cable Sandwich Ec M
Watertight Uf Connector Installation Home Wiring
Wire Cable Conduit The Complete Guide To Wiring Black Decker Cool Springs Press

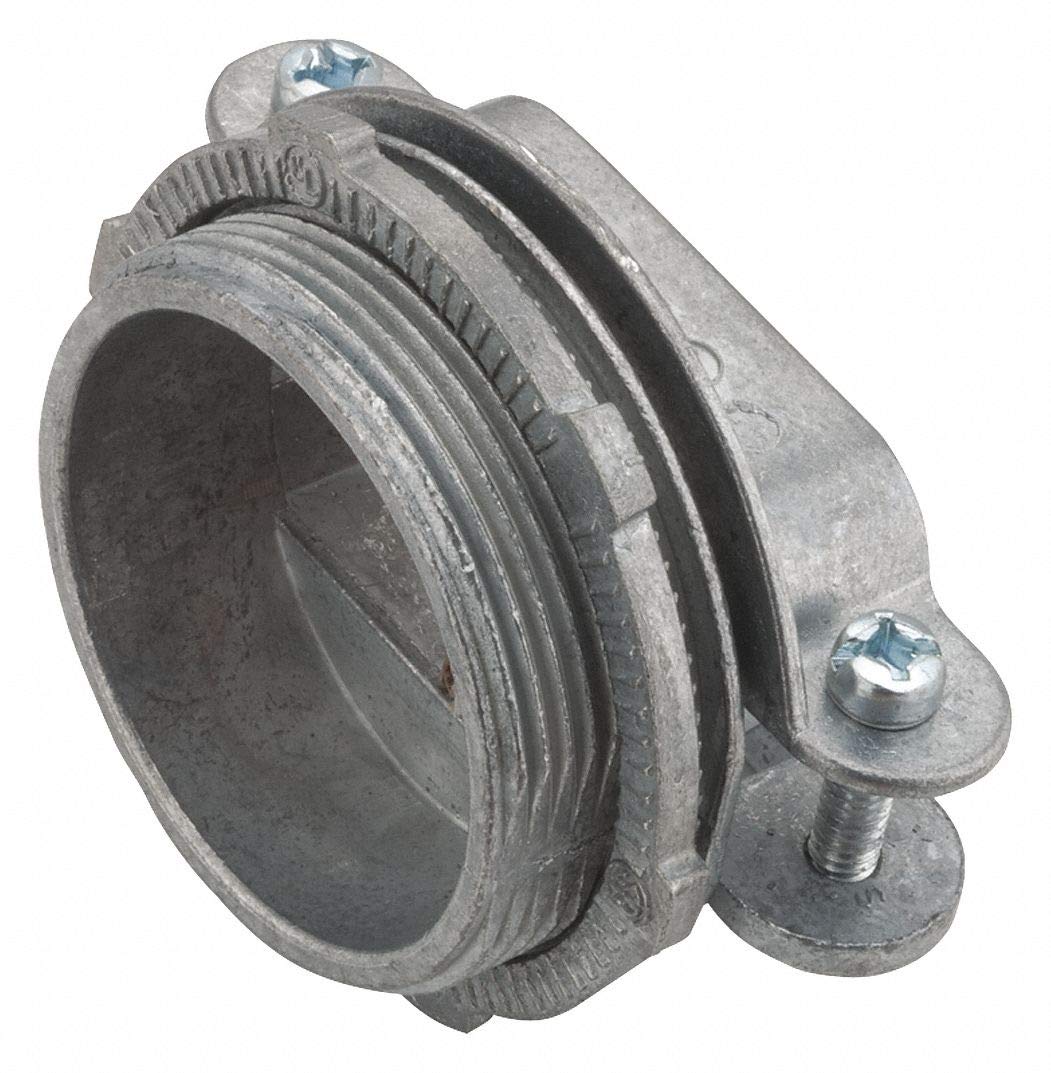

Amazon Com Raco Uf Cable Connector 1 1 4 Knockout Size Industrial Scientific
