Hooking Up Light Switch

Installing a 3-way light switch is a much more involved. Hook Up Wall Light Switch Turn off power step 2.

Wiring Diagram For House Light Http Bookingritzcarlton Info Wiring Diagram For House Light Light Switch Wiring Basic Electrical Wiring Electrical Wiring

Step by step instructions on how to wire a switched outlet.

Hooking up light switch. Sometimes it is handy to have an outlet controlled by a switch. Once those screws are removed take your fingers and grab hold of the tabs on the top and bottom of the switch to pull it out of the junction box. To add the switch youll use one of two wiring a light switch diagrams shown below depending on whether the power comes to your light switch first the most common situation or to the light fixture first.

Next take your Phillips-head screwdriver or power drill and remove the two screws that hold the light switch onto the junction box. Turn off the correct circuit at your electrical panel. When thats done you can treat the cable coming from the outlet into the switch box as a regular line cable.

Connect the black wire to one of the switch terminals and the black wire going to the light fixture to the other switch terminal. The single-pole switch is used when one or more lights. Need help wiring a 3 way switch.

Basic video on how to wire up a 120 Volt OnOff Light SwitchDIY Project120 Volt Light Switch How to Hook Up or Wire Up Instructions on how to hook up a levit. Wire a Switched Outlet. How to Hook Up a Home Light Switch.

This circuit is wired with a 2-wire cable running from the light to the switch location. Turn on the power and test the switch. There are three basic types of light switches used in the home.

If the light switch has a ground screw on it usually green and at the bottom of the switch connect it now. Hooking up a switch is the essence of simplicity. Hook the black wire to the bottom terminal on the switch.

You can do this light switch wiring in one of two ways. In the tutorial viewers will see the use of. The most common is to daisy-chain the light fixtures by connecting them to each other and hooking the first one up to the switch.

When the electrical source originates at a light fixture and is controlled from a remote location a switch loop is used. Single-pole 3-way and 4-way switches. Twist the white wires together and cap them and connect the ground wires to the ground terminal.

The other way to wire multiple lights to one switch is to connect all of them directly to the switch in a. The two house wires may be black red or white with black marking. Mar 09 21 0956 PM.

Loosen and remove the screws from the cover for the light switch that operates the light using a screwdriver. With easy to follow diagrams and instructions you can have that convenience in no time. Push the switch into the box and secure it with screws at the top and bottom.

The wires from the dimmer will typically be black. Connect the new switch step 8. The video covers how to wire a basic 15 amp single pole light switch with 142 electrical wire.

Either way complete these five steps for 3-way light switch wiring. Attach the black power cable from the wall to the general screw black in the three-way light switch. Hook the curled end of the wire under the screw then tighten down the screw to hold the wire firmly in place.

There will be one on top and one on the bottom. Steps for Wiring a 3-Way Light Switch. Connect each dimmer wire to a house wire by gripping the wire ends with a pair of pliers and twisting them together.

Want to turn a lamp on with a light switch. Twist the ends together clockwise and cap them using a wire connector nut. Hook the white wire to the top terminal on the switch.

Wiring A Light Switch Power Into Light

How To Wire A 3 Way Light Switch Diy Family Handyman

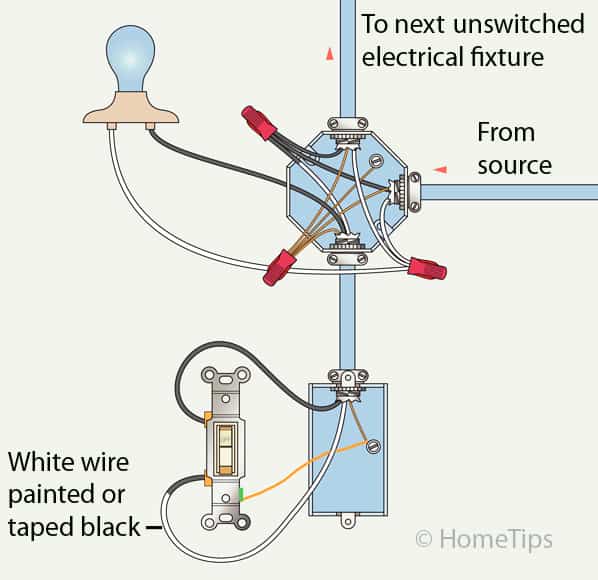

Standard Single Pole Light Switch Wiring Hometips
